HKS Forged Piston Full Kit G16E 1.75L HC-TT S3 (21004-AT012)
The G16E-GTS High Compression Stroker Kit is engineered to deliver maximum performance by increasing displacement and raising compression, significantly enhancing power and response across the rev range. Designed for serious enthusiasts and competitive builds, this kit unlocks the true potential of the G16E-GTS engine when paired with high-octane fuel, ensuring optimal combustion efficiency and power output. Crafted with precision and built from premium materials, the stroker kit improves torque, throttle response, and overall engine performance. It’s the ultimate upgrade for those seeking superior acceleration, sharper engine response, and reliable high-performance operation in both street and track conditions.
Application
- TOYOTA GR COROLLA (2023, 2024, 2025)
Features

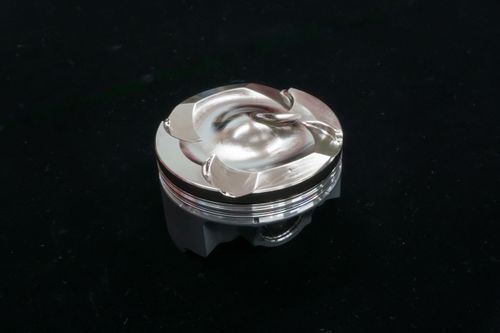

- Crown shaped structure speeds up the combustion spread, suppresses knocking and achieves a high compression ratio.
- A2618 material has high-temperature strength making it possible to make the wall thinner, resulting in weight reduction.
- Precise machining has eliminated excess material, achieving weight reduction.

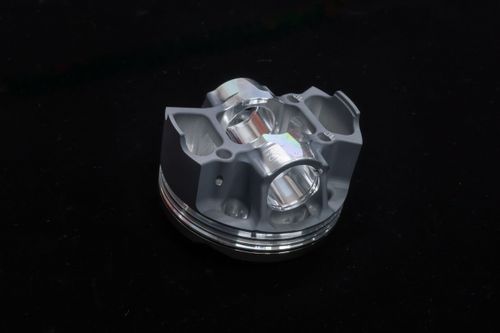

- Bridge structure has increased structural rigidity and achieved weight reduction.
- The cooling oil from the three oil jets is efficiently guided through the piston to optimal locations, ensuring effective cooling.
- The area above the top ring groove has been nickel-plated to improve knock resistance and wear resistance.
- The use of a two-layer coating has improved for seizure resistance and lower friction.
- The weight of the port has been reduced by shortening the piston pin.
- The top ring has been titanium-coated to improve durability.
- The edges that are prone to becoming heat spots have been carefully removed by machining.

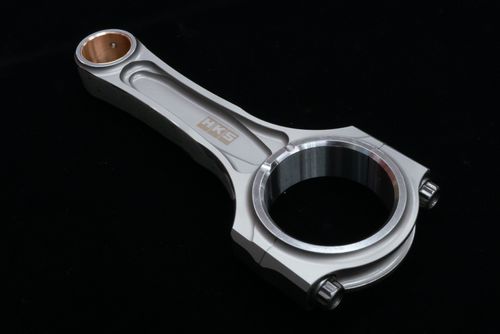

Connecting rods
- Use machined I-Beam connecting rods made of nickel-chrome steel.
- 25% strength increase over the OEM product.
- Compatible with D24 piston pins.
- WPC surface treatment for improved fatigue strength

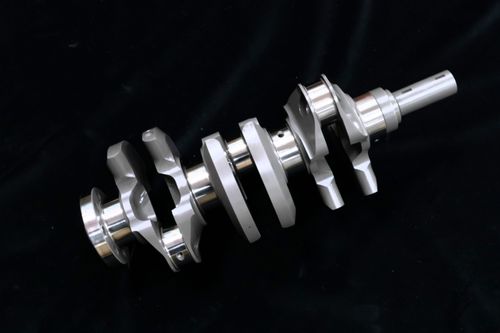

Crankshaft
- A full counter crankshaft machined from chrome steel reduces the burden on the main bearings.
- The inertia weight has been reduced efficiently by positioning the counterweight and reducing the weight of the pin.
- Response is also improved by removing the balance shaft.
- The balance rate of 50%, suppresses the vibrations unique to 3-cylinder engines.
Specificaitons
- Boar: 88.0 mm
- Stroke: 95.7 mm
- Displacement: 1,746 cm3
- Comp. Ratio (t=0.79): 11.6

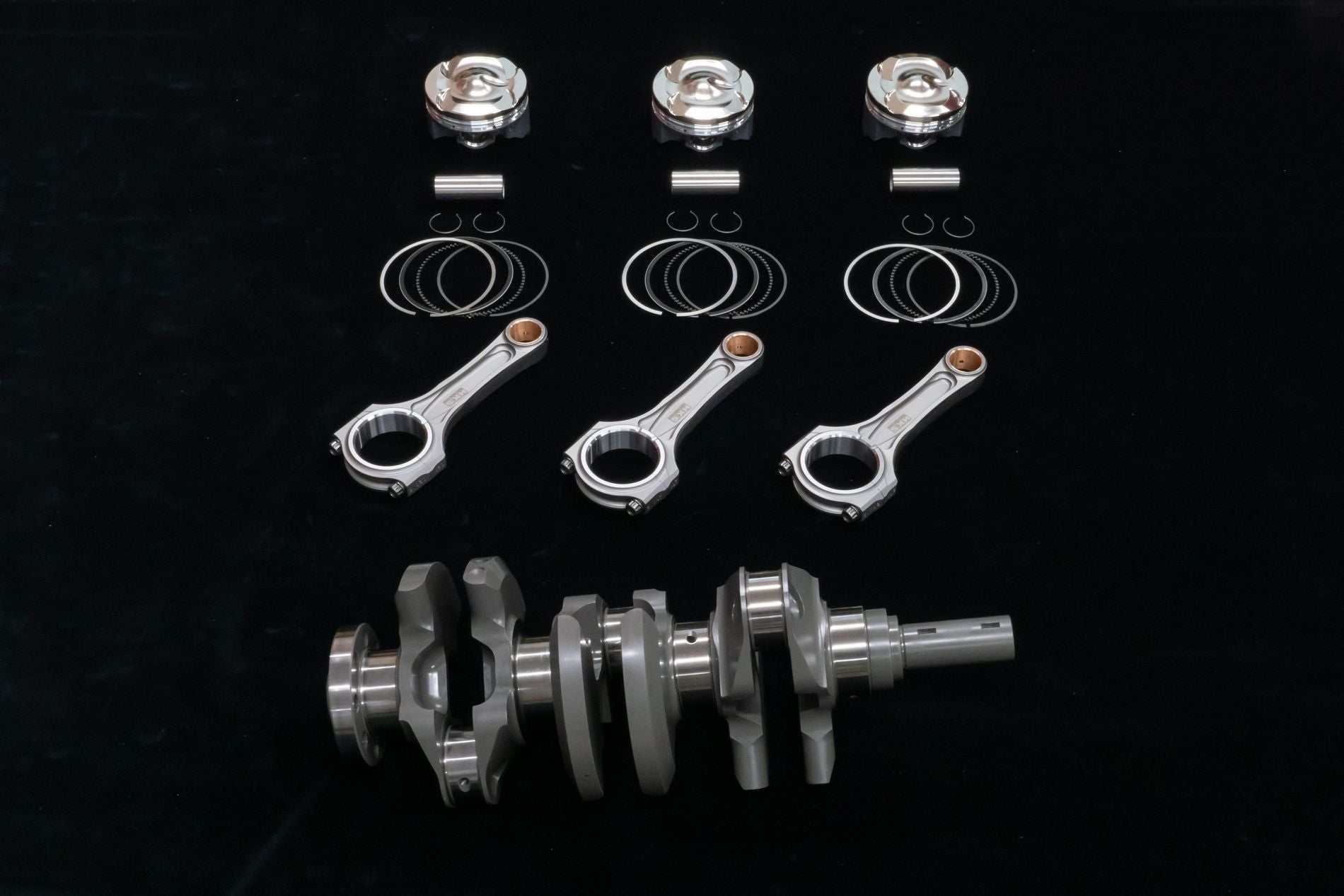

What's in the box?
- Piston Kit D-88 (incl. Piston Rings and Pins)
- Conrod Set
- Crankshaft
